Product Description

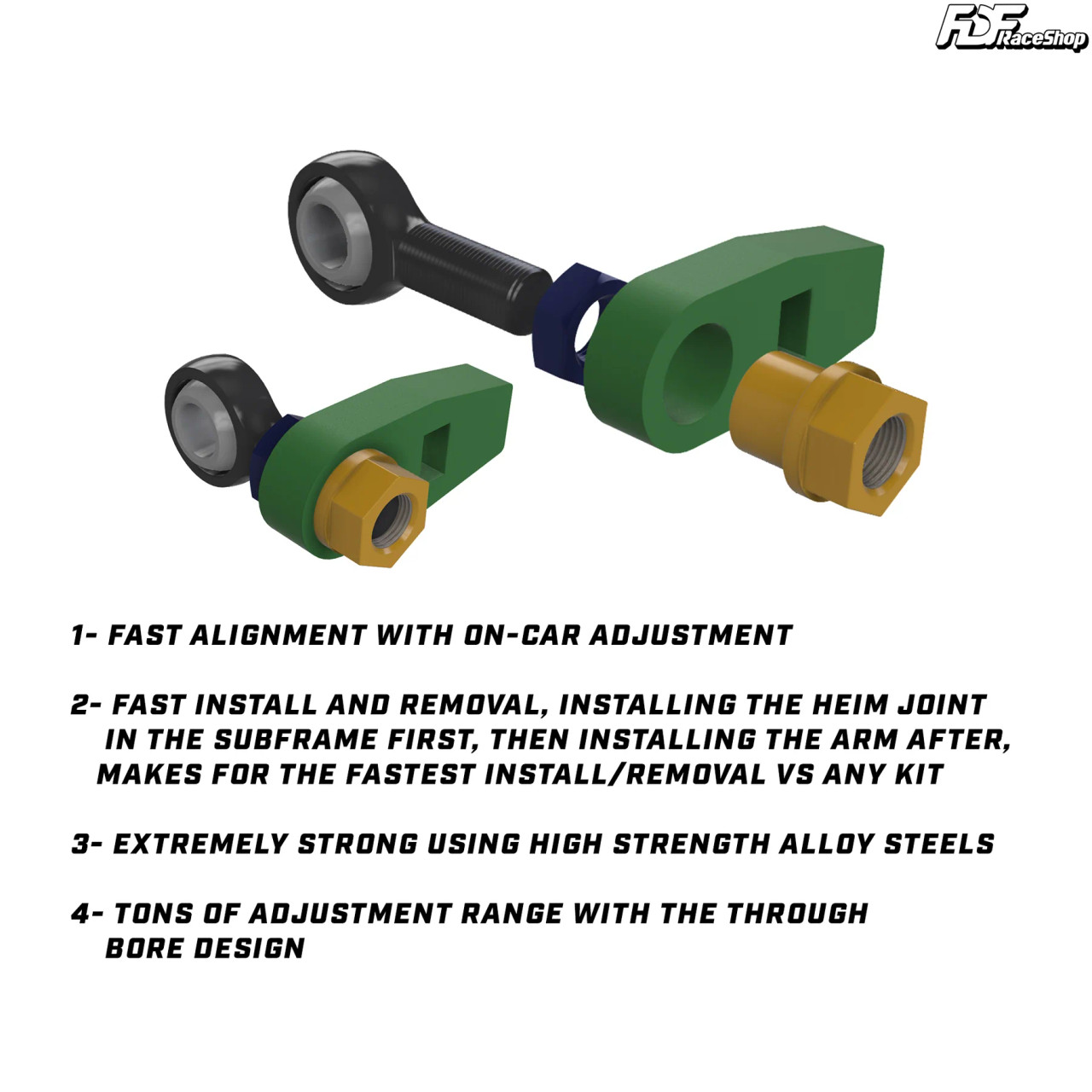

94-04 Mustang SN95 FDF Mantis Angle Kit
The Mantis angle kit for the Mustang SN95 is the newest angle kit in today's drift market and offers many options that haven't been previously offered on other angle kits.
- Angle: 65+ degrees
- Ackerman: Anti/Pro Ackerman adjustable
- Roll Center: 50mm Roll center adjustment
- Bump steer: minimal bump steer in drift by perfecting tie-rod pitch angle
- Caster: optimized caster for lead and trail wheel contact, with built-in trail to the knuckle
- Camber: optimized camber to counteract caster at full lock.
- Track Width: adjustable range from 50mm-75mm wider per side creating a stable and high clearance front end
- Suspension Travel: long travel range, full lock to lock at max droop and max compression
- Joints: Chromoly 3 piece Heim joints and spherical bearings
- Weight Reduction: 7075 aluminum and Alloy steel used wherever possible for the lightest and strongest design.
The Full kit includes:
- 2- Mantis Lower Control Arms
- 2- knuckles
- 2- outer tie rods
- All hardware required for install included
Caster Plates should be added, these are used to reduce high caster, camber, and KPI angles of the SN95 chassis by moving the top of the Coilover forward and outward, it is recommended to select the caster plates if you do not already have a solution to make these adjustments, there are other plates available on the market as well. installing our caster plates will require some cutting of the chassis and minor welding because when the strut is relocated forward and outward, it will interfere with some sheet metal parts of the chassis, the sheet metal it interferes with needs to be cut and removed.
Please allow 2-4 weeks of fabrication before the kit is shipped.
