Product Description

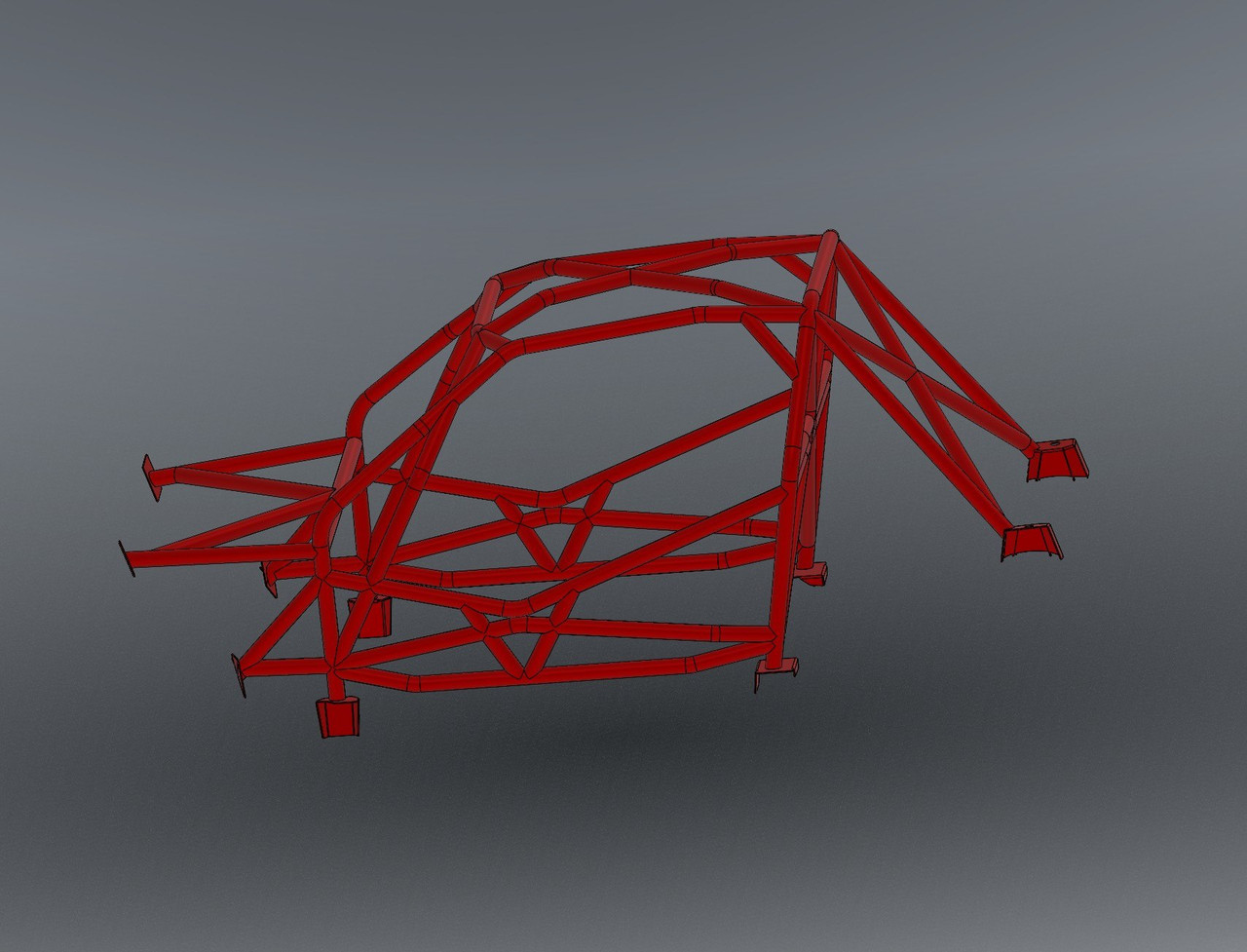

1979-1993 Mustang Foxbody "Road Race Spec" Roll Cage Kit by Cage Kits
The CageKits Ford Foxbody Road Race Spec Roll Cage Kit is engineered for maximum strength, precision, and compliance with NASA or SCCA standards depending on the weight of the gutted chassis. Built from a combination of 1.75″ 1020-1026 DOM and 1.5″ x .095″ 1020-1026 DOM tubing. The Road Race platform uses larger primary structure sizes and enhanced geometry—surpassing our Drift Spec kits in overall rigidity and safety-focused design. Designed specifically for the Ford Mustang Foxbody (1979-1993), each tube is CNC-notched, precision-bent, and laser-etched for exact placement—ensuring a clean, straightforward installation with no custom fabrication required.
Tubing Configuration:
(Main Structure – 1.75″ x .095″ DOM): FOX-A-2102
(Main Structure – 1.75″ x .120″ DOM): FOX-A-2101
Main Hoop, A-Pillars, Front Top Bar, Door Bars, Sill Bars, Rear Down Bars, Dash Bar, Diagonals, and Harness Bar
(Supporting Structure – 1.5″ x .095″ DOM):
Roof Bars, FIA Bars, Door Bar Supports, Anti-Intrusion Bars, and Tube Gussets
Door Bar Layout:
The Foxbody Road Race Spec Roll Cage Kit includes a standardized door bar package designed for strength and compliance:
-
Door Bar Style: X-Style
-
Door Bar Depth: Non-Gutted *Brings the bars closer to the interior to allow working windows. OEM door cards cannot be fully retained and must be trimmed halfway horizontally or replaced with a sheet metal panel.
Technical Details:
- Built from 1.75″ DOM and 1.5″ x .095″ DOM tubing
- CNC-notched joints for precise, tight fitment
- Laser-etched placement guides for easy tube identification
- Precision-bent to match Foxbody chassis geometry
- NASA / SCCA–inspired design and layout
- Supersedes Drift Spec structures in tube sizing and layout requirements
- Standardized Road Race door bar configuration (Non-Gutted, X-Style)
Installation & Compliance Notes:
-
Compliance Responsibility: Customers are responsible for verifying that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.
-
Cages are optimized for competition and off-street applications.
Please note: Made to Order in the USA — Ships Upon Completion; lead time varies!
